Beer Equipment 5bbl 10bbl 15bbl 20bbl 30bbl 40bbl Beer Brewing Equipment Beer Equipment

Brand: TONSEN
Product origin: JINAN
Delivery time: 30 WORKING DAYS
Supply capacity: 5000 SETS/YEAR

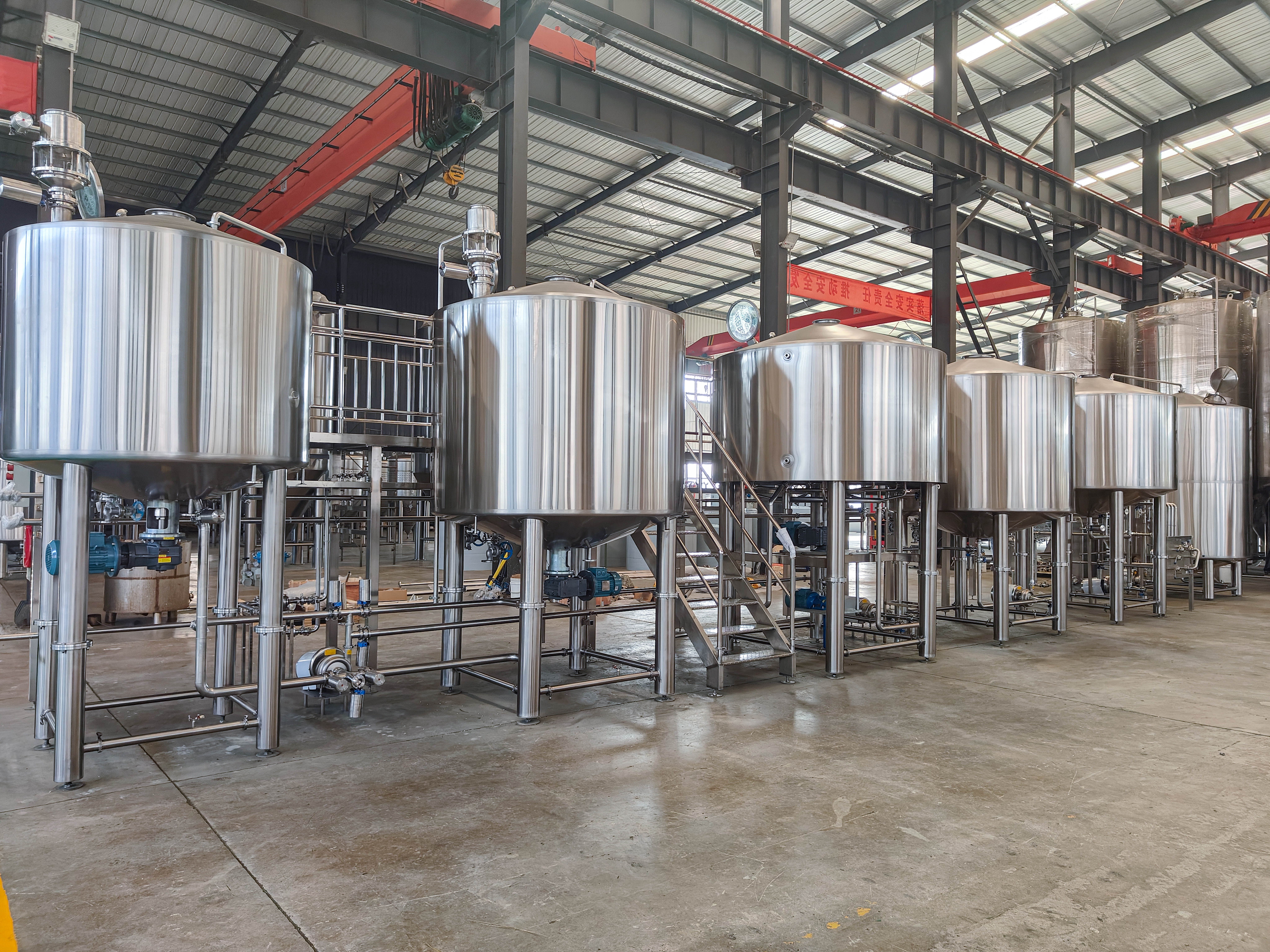

Beer brewing equipment 10BBL 15 BBl 20BBL 30BBL 40BBL steam heating Beer Brewery Equipment for Craft Beer Brewing System Tonsen is a professional beer equipment manufacturer. We are specialized in the professional design, manufacture, installation and commissioning of beer equipment and supporting facilities. Our products include mashing equipment, fermentation equipment, yeast spread cultivation equipment and refrigeration equipment for small and medium-sized brewery, hotel, pub, etc.

Messages

THE OUTPUT OF BREWING EQUIPMENT

Daily Output	300L	500L	600L	800L	1000L	2000L	3000L	5000L
Unit Type	TS300	TS500	TS600	TS800	TS1000	TS2000	TS3000	TS5000
Floor Space	25m²	45m²	55 m²	70m²	80m²	120m²	150m²	250m²
Height	2060mm	2700mm	2700mm	2750mm	2810mm	3500mm	4000mm	4300mm
Power	20KW	35KW	35/15KW	35/15KW	35/15KW	65/15KW	65/15KW	65/15KW
Electrical	3P 380V(220V, 110V, 415V...) 50(60)HZ; 1P 220V(120V,110V,240V...) 50(60)HZ

300L PER BATCH BEER LIST

Brew House System	Grain Mill	80kg/H
	Mash tank/Lauter tun/Hot water tank	300L
	Kettle/Whirlpool tank	300L
	Hot water pump	3T/H
	Heat Exchanger	4M2
Fermenting System	Fermentation tank	Assorted
Fermenting System	Yeast adding equipment	300L
Filter System	Plate beer filter	3L
	Bright beer tank	Assorted
	Movable pump	1000L
Cooling System	Chiller machine	3P
	Ice water tank	3T/H
	Ice water pump	Assorted
Filling system	Keg washing machine	50L
	Beer Kegs	As required
	European standard	As required
Control System	Control cabinet	3T/H
Control System	Control cabinet	Temperature and Pressure control
Accessory	Valve, pipes and	Assorted
Accessory	Other spare parts	Assorted

Main equipments adopted international quality standards of sanitary 304 stainless steel , to deal with the tank by plasma cutting , pure Ar-shielding welding, mechanized automatic polishing machine

beer brewing equipment

brewing equipment

PRODUCT FEATURES:
Our Fermentation tanks/tun available from 100L to 20000L (1 gallon to 20 gallon) and average 25% Head Space.
All tanks have a Dish top,
Cylinder body & 60/70° Cone Bottom.
Certified stainless steel(304,316) material for all tanks, with 100% TIG welded joints and seams with sanitary interior polish.
Dimple Plate jacket for Glycol cooling & high efficient Polyurethane foam insulated.
All tanks use Tri-clamp connections, are designed for up to 14.7 PSI and tested at 30 PSI.
We can customize fabricate any tank to meet your brewery's space and height restrictions.
